Air Cooled Aftercoolers for Compressed Air

Air Cooled Aftercoolers for Compressed Air Systems

Aftercoolers

Air cooled aftercoolers are critical components in compressed air systems, designed to cool hot compressed air discharged from the compressor. By reducing air temperature, they condense water vapor, enabling effective moisture removal through separators, which protects downstream equipment from corrosion and damage. This ensures reliable operation for pneumatic tools and industrial processes.

Moisture Removal and Air Quality

Compression generates heat, causing air to carry significant water vapor. Uncooled, this moisture can corrode pipes, damage tools, and affect product quality in industries like food processing or electronics. Air cooled aftercoolers use ambient air to cool compressed air, condensing up to 75% of water vapor into liquid for removal. This delivers cleaner, drier air that meets industry standards.

Finned tube or plate-fin coil designs are common in air cooled aftercoolers, offering efficient heat transfer. These systems ensure consistent cooling, minimizing water carryover and maintaining high air quality for sensitive applications.

Energy Efficiency and Cost Savings

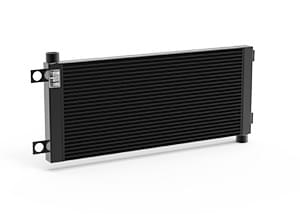

Air cooled aftercoolers are cost-effective, requiring no external water source, which reduces installation and operational costs. They use motor-driven fans or belt guard systems to force ambient air over cooling coils, ensuring efficient heat removal with low energy consumption. Their simplicity and reliability make them ideal for various industrial settings.

Durability and Maintenance

Constructed from robust materials like steel or aluminum, air cooled aftercoolers are designed to withstand harsh industrial environments. Their rugged build resists corrosion and wear, ensuring long-term performance. Maintenance is straightforward, with accessible coils and automatic drains for moisture removal, reducing downtime and extending equipment life.

Applications Across Industries

Air cooled aftercoolers are widely used in industries such as manufacturing, automotive, construction, and mining. They support applications like pneumatic tools, spray painting, and air-powered machinery, ensuring efficient operation and equipment protection. Their flexibility in installation makes them suitable for diverse operational needs.
